• 30mm ultra-thin power supply, wide range of applications
  • Wide input voltage range, strong adaptability
  • -30℃~+70℃ wide working temp.
  • According to US standard: UL60950
  • Using top brand components
  • Overvoltage, overcurrent, and overload protection
  • 100% full-load aging at high temperature , low failure rate and high reliability

SPECIFICATION (Measured at 230Vac, 25℃. Unless otherwise noted)

ItemSpecifications
Output Voltage Selectable12V;24V
Overload protectionAutomatically resume work after the overload fault is eliminated, long-time short-circuit of the output terminal will not be damaged or heated
Output short circuit protectionAutomatically resume work after the output short-circuit fault is eliminated, long-time short-circuit of the output terminal will not be damaged or heated
Over voltage protectionPrevent from being damaged or burnt due to excessive voltage
Withstand voltageIP-OP:3000Vac; IP-PE:1500Vac;OP-PE:500vdc
Working temperature-40~70℃
Start-up Time<3Sec
Safety standardsGB4943/EN60950
EMCstandardsIEC61000-4
Connection9.5mm screw terminial
Dimension(L*W*H)99±1mm×82±1mm×30±1mm

Product

ModelInputOutputCurrentR&NEffiTempStorage temperature

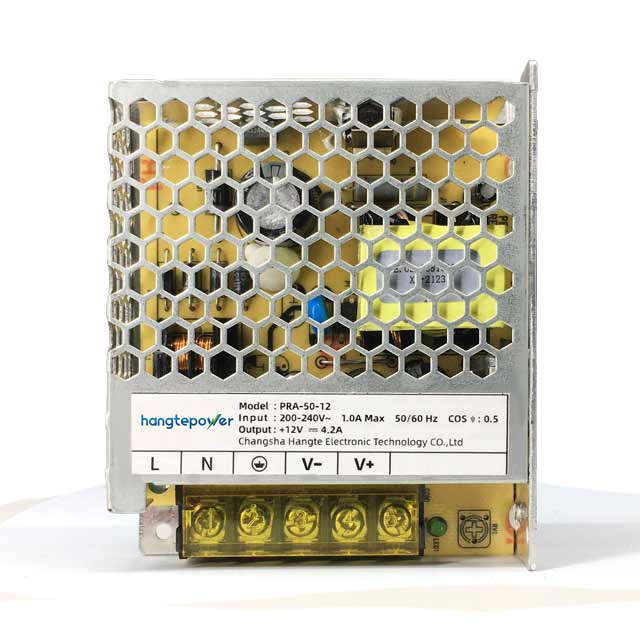

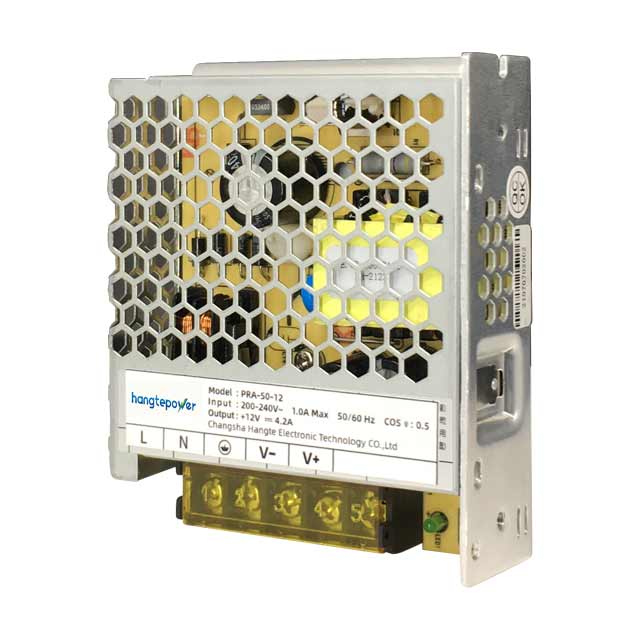

PRA-50-12AC176-264V12V4.2A<300mV83%-40-70℃-40℃-85℃
PRA-50-24AC176-264V24V2.1A<300mV85%-40-70℃-40℃-85℃
